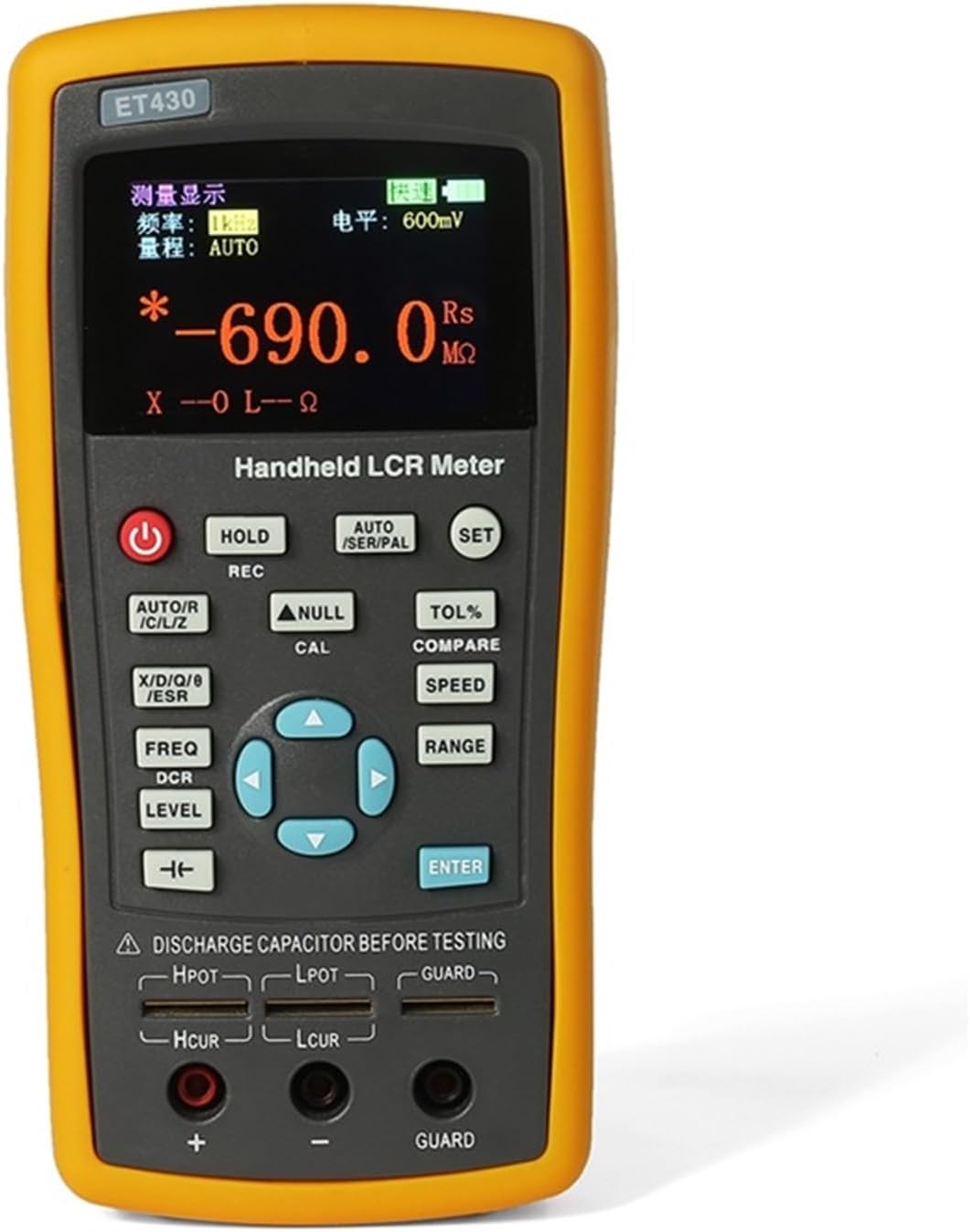

Multifunction Handheld LCR Digital Bridge Meter High Precision Capacitance Inductance Resistance Meter(ET433standard)

Main technical indexes:ModelET430ET431ET432ET433Testing frequency100Hz, 120Hz,1KHz, 10KHz,40kHz, 100KHz100Hz, 120Hz, 1KHz, 10KHz100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz100Hz-100KHzContinuously adjustable,a step of 1 HzBasic accuracy0.3%0.2%0.2%0.2%Display screen2.8" TFT LCD screenNumber of display digitsPrincipal parameter: 5 digitSecondary parameter: 5 digitMeasured parameter:Principal parameter: L/C/R/ZSecondary parameter: X/D/Q//ESRElectrolytic capacitor modeDCR mode× Measurement rangeL:0.000µH-2000H,C:0.000pF-20.000mF,R:0.0001-20.000MMeasuring displayspeed1 time/s (slow), 2 times/s (medium), 4 time/s (fast)Internal bias× 0-500mV adjustable, at a step of 1mV.Testing level0.6Vrms0.1Vrms, 0.3Vrms, 0.6Vrms,1Vrms10mV-1100mV adjustableCalibration functionOpen circuit calibration, short circuit calibrationScreening functionThe limit range of screening can be set to 1%-50%, and the fixed points are 1%, 5%, 10% and 20%.Deviation measurementUsed for comparing and displaying deviation percentage of component and the set nominal valueOthersAdjustment of backlight brightness, Chinese and English are optional,USB device and automatic power-off timeAccessoriesStandard configuration1. Mini-USB cable; 2. Power adapter; 3. Short circuit bar;4. Red and black rubber ; 5. High capacity lithium battery/ Kelvin clipsOptional configurationKelvin clipsSMD clipsSMD clips

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Data processing: broader data processing and analysis.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
